O.D. Grinding - The Challenge
OD (Out Diameter,) Clearance Angel and End Face require wheels which enable the work piece to achieve excellent finishing, maximum surface Quality.
The requirements for surface quality have become much more stringent.
Toolgal wheels match this requirement
Toolgal bonds combine with accurately geometric designee of the wheels enables the customer to meet the new demands.
Request a sample or Information
Toolgal Standard Range for Grinding of Clearance Angles, End-faces
Suitable also for grinding OD, Gashing and radial clearances grinding and regrinding
| Diamond wheels for tungsten carbide grinding | Wet Grinding | Dry Grinding | CBN | |||
| High performance hybrid bond | RM6 | D46-D64 C100 | RM5 | RM9 | ||
| Standard resin bond | CB4 | D46-D64 C100-C125 | CB | D64-D126 C75 | RM5 | RM9 |
| Recommended cutting speed [m/s] | 25-35 | 12-22 | RM5 | RM9 | ||
| CBN wheels for steel grinding | Wet grinding | Dry grinding | RM5 | RM9 | ||
| High performance hybrid bond | RM9 | B91-B107 V240 | RM5 | RM9 | ||
| Standard resin bond | CB951 | B91-B126 V240-V300 | CB964 | B91-B126 V180 | RM5 | RM9 |
| Recommended cutting speed [m/s] | 25-45 | 25-35 | RM5 | RM9 |
11V9 12V9

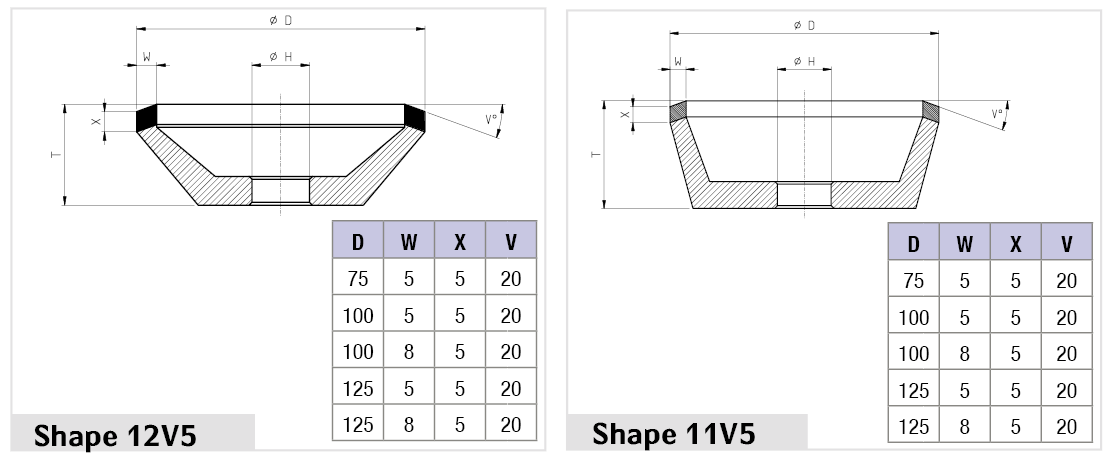

12V5 11V5
1A1
